Model C3 46/50/64
| SERIE | C3 | |
| Displacement (1) |
cc/giro cc/rev |
46-64 |
| Connection flange | SAE "B" | |
| Charge pump displacement |
cc/giro cc/rev |
13 (0.79) |
| Max speed (2) |
giri/min rpm |
3600 |
| Min speed |
giri/min rpm |
700 |
| Rated pressure |
bar (psi) |
320 (4641) |
| Peak pressure |
bar (psi) |
400 (5800) |
| Charge pressure |
bar (psi) |
15÷25 (standard 20) (217÷362) (standard 319) |
| Max case pressure |
bar (psi) |
2 (29) |
| Suction pressure |
bar (psi) |
? 0.8 (? 11.6) |
| Moment of inertia rotating parts |
kg m² (lbf ft²) |
0.0046 (0.109) |
| Weight (approx) (3) |
kg (lb) |
29 (63.9) |
Notes:
(1) The displacements 46-64 use the same external casing.
(2) The values shown are valid for an absolute pressure (pass) of 1 bar (14.5 psi]) at the suction inlet port an when operated on mineral oil.
(3) Approximate values.

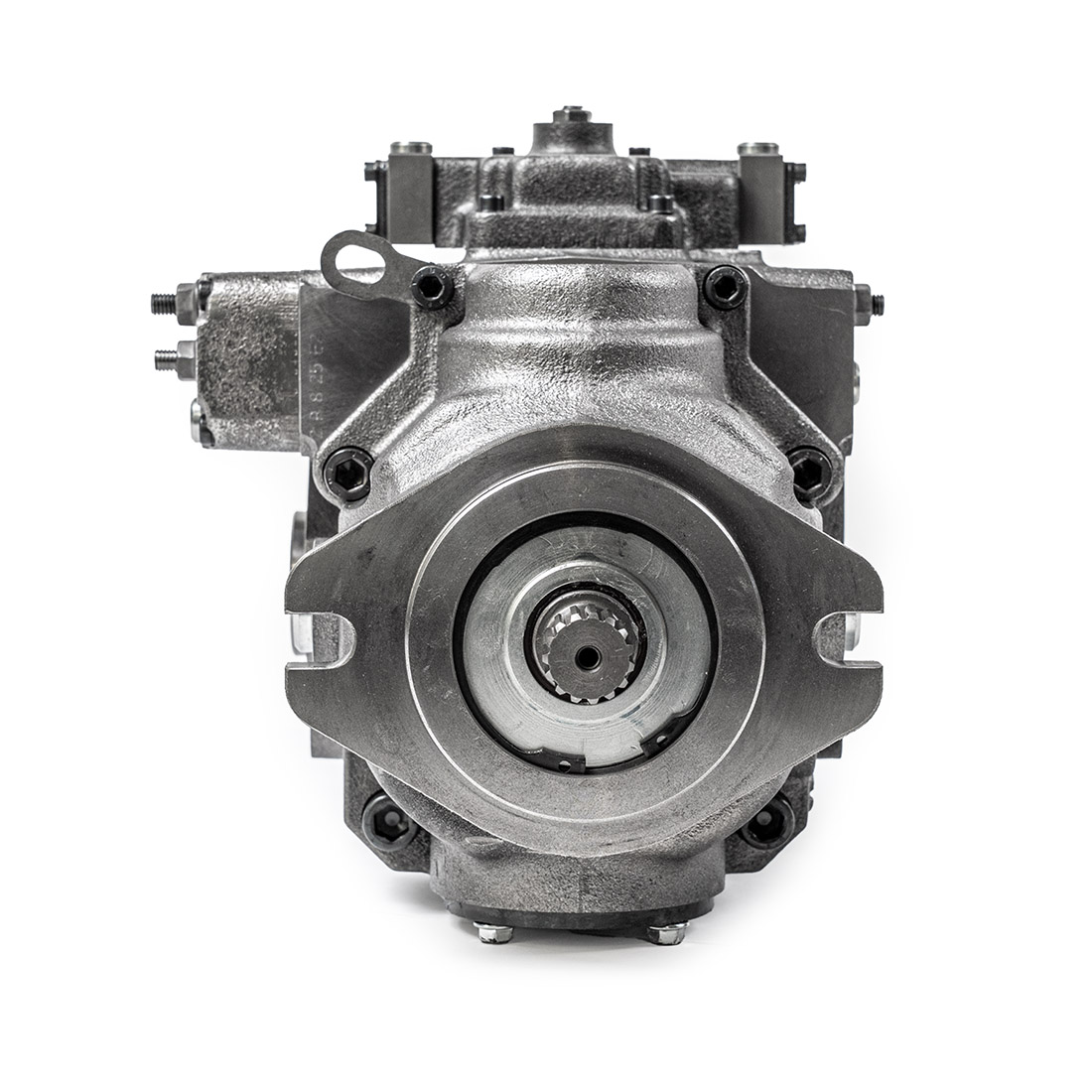

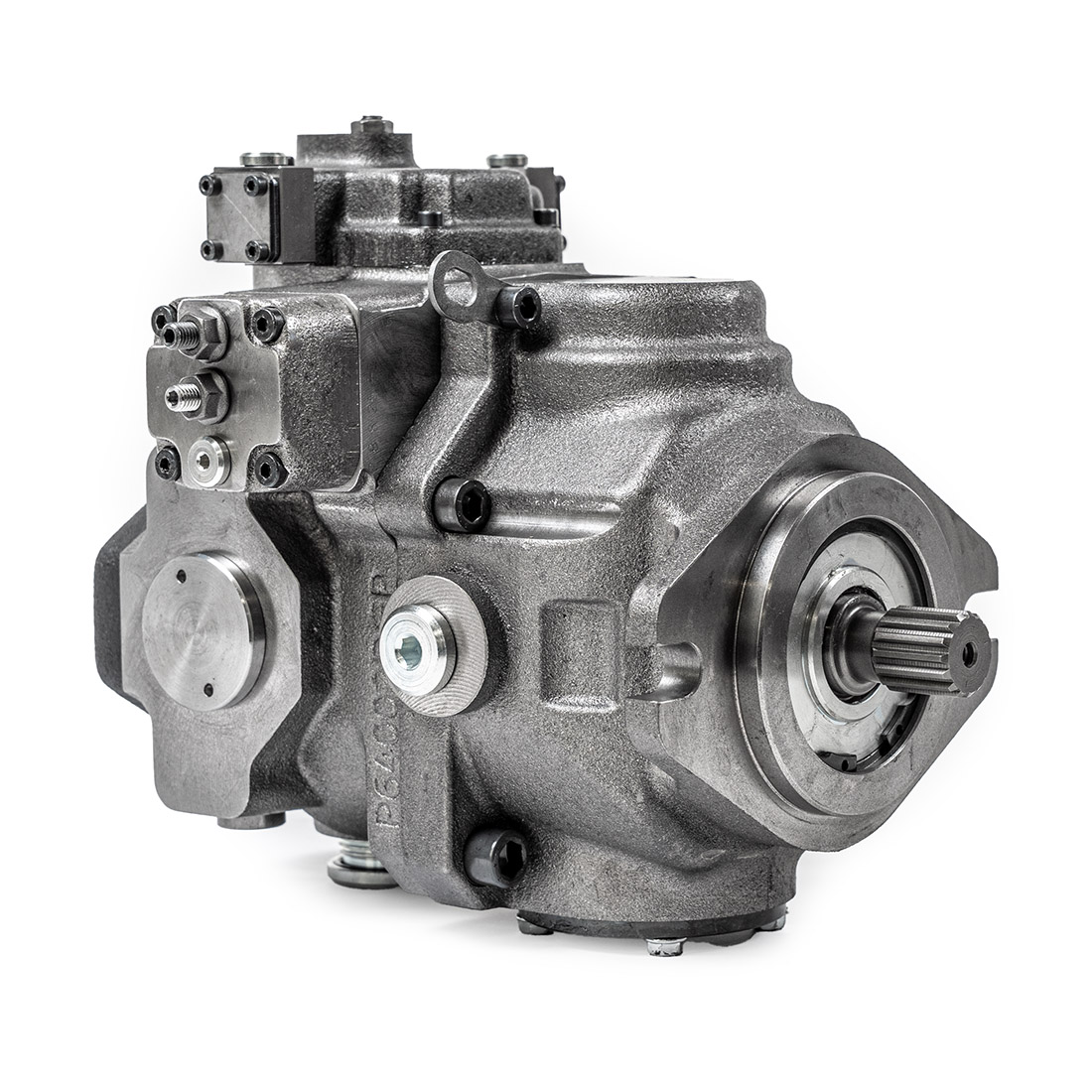

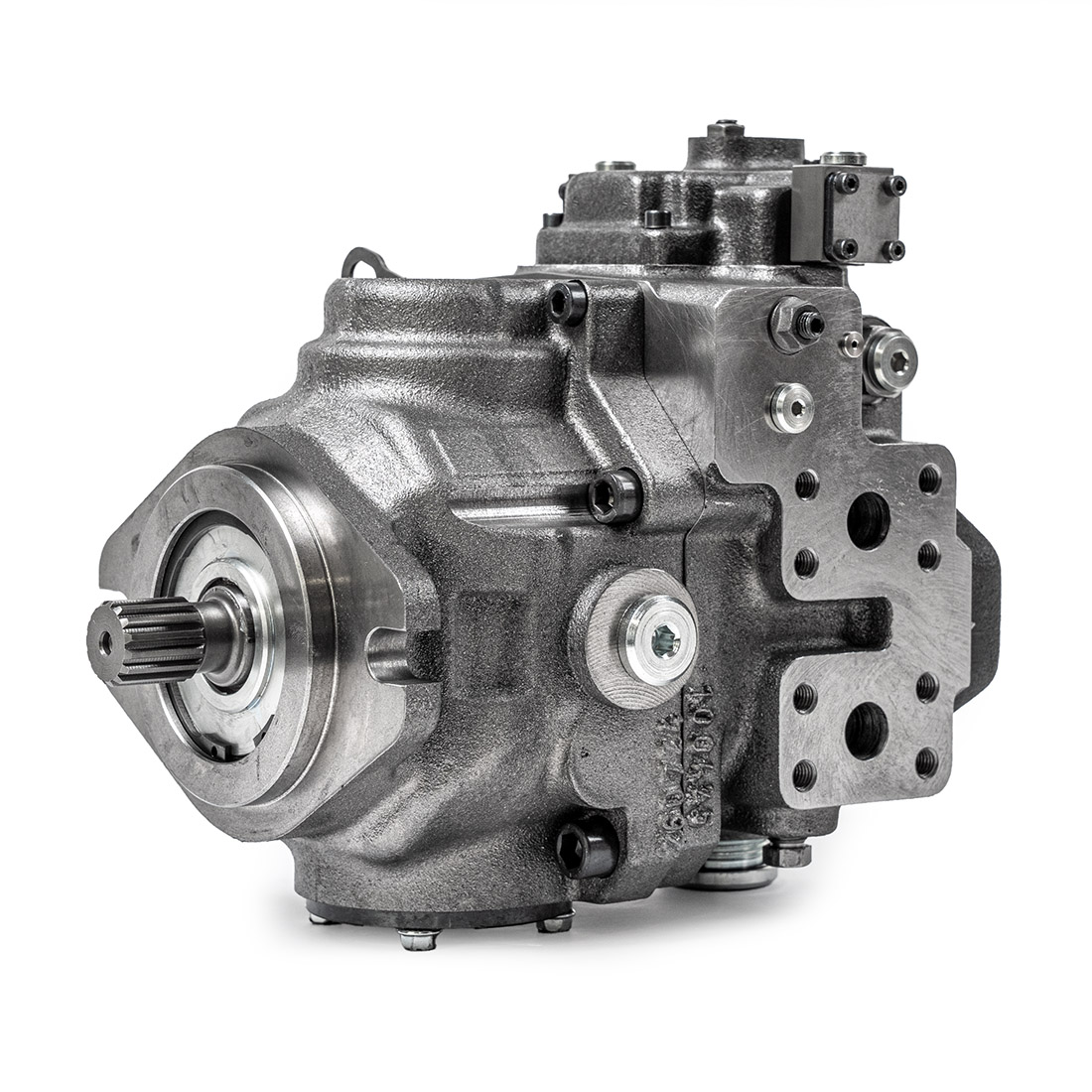

The C3 46-50-64 series includes variable displacement axial piston pumps designed for use in closed-loop circuits.
Displacement variation occurs through the rotation of a swash plate; by moving beyond the neutral point, flow reversal is achieved.
The unit offers the following range of controls:
Two mounting provisions for auxiliary pumps and additional options are available:
Peak conditions must not exceed 1% of each minute.
Avoid simultaneous operation at maximum speed and maximum pressure.
