Model WA
| SERIE | WA | |
| Displacement (1) |
cc/giro cc/rev |
18 |
| Connection flange | SAE "A" | |
| Max speed (2) |
giri/min rpm |
3000 |
| Min speed |
giri/min rpm |
700 |
| Rated pressure |
bar (psi) |
210 (3046) |
| Peak pressure |
bar (psi) |
270 (3916) |
| Max case pressure |
bar (psi) |
2 (29) |
| Suction pressure |
bar (psi) |
? 0.8 (? 11.6) |
| Weight |
kg (lb) |
12,5 (27.4) |
| Moment of inertia rotating parts |
kg m² (lbf ft²) |
0.0014 (0.033) |

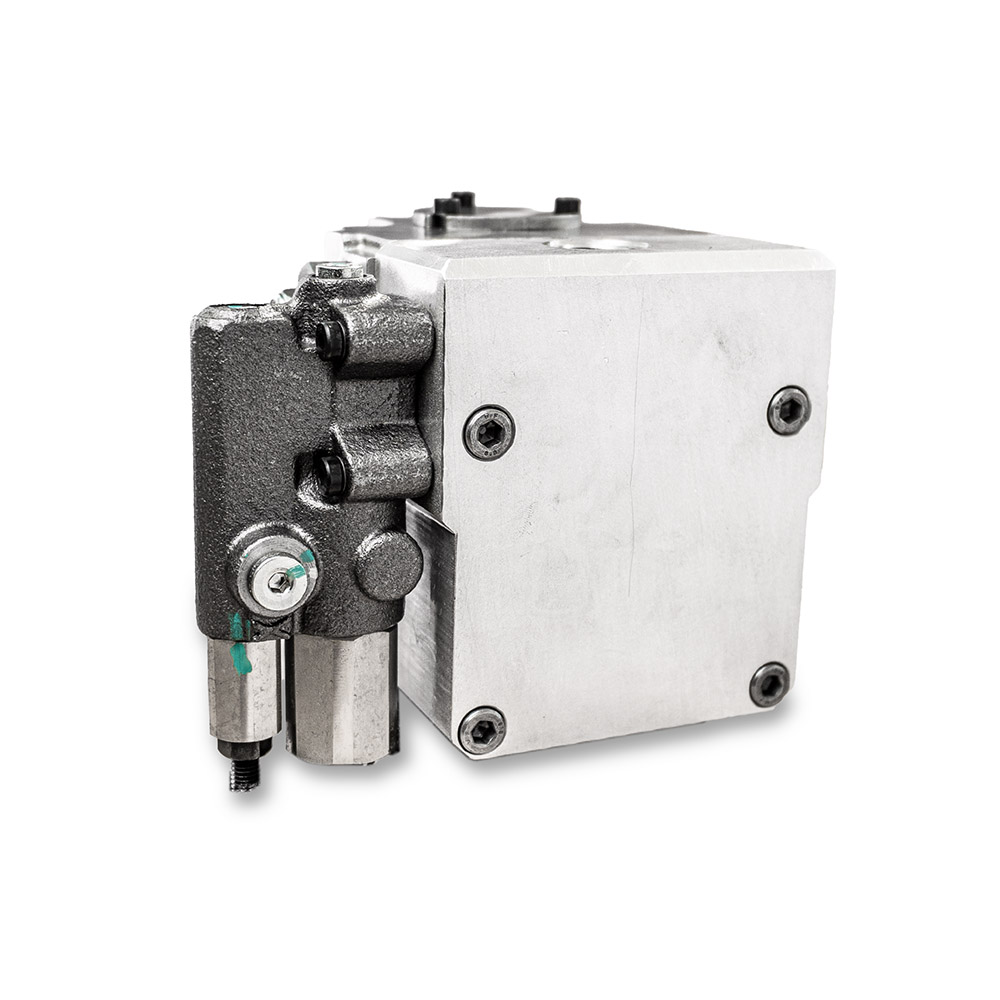

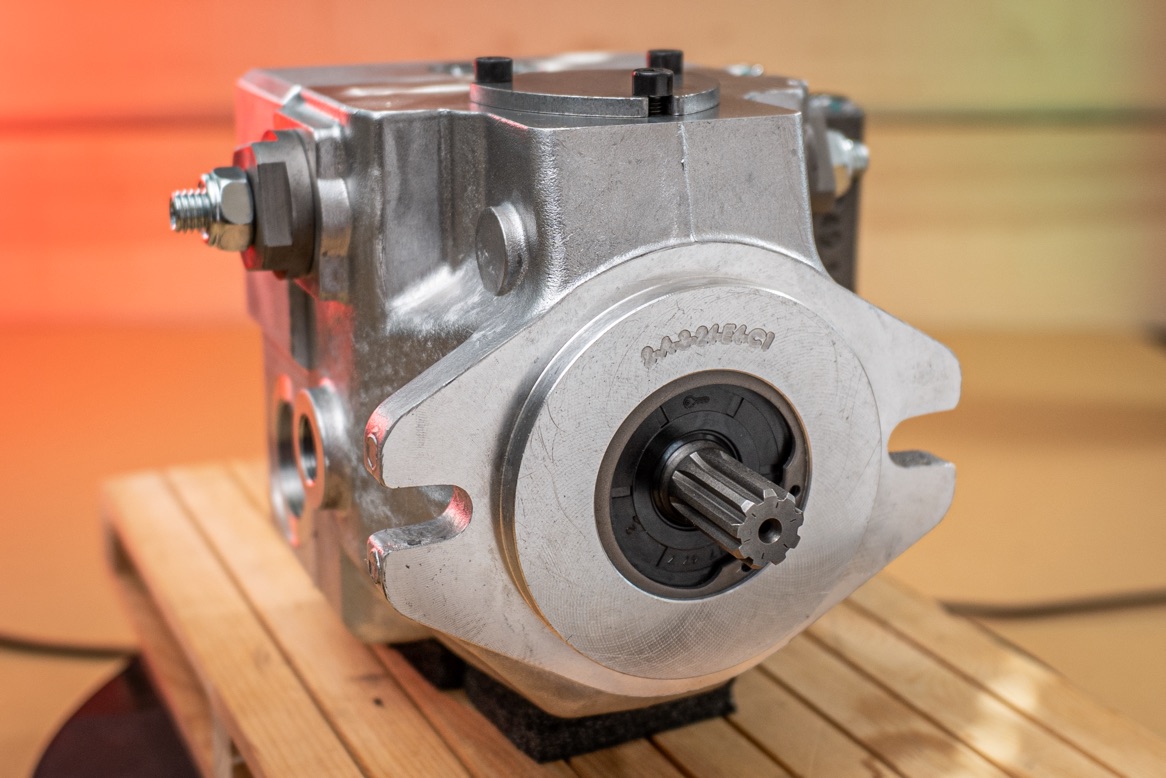

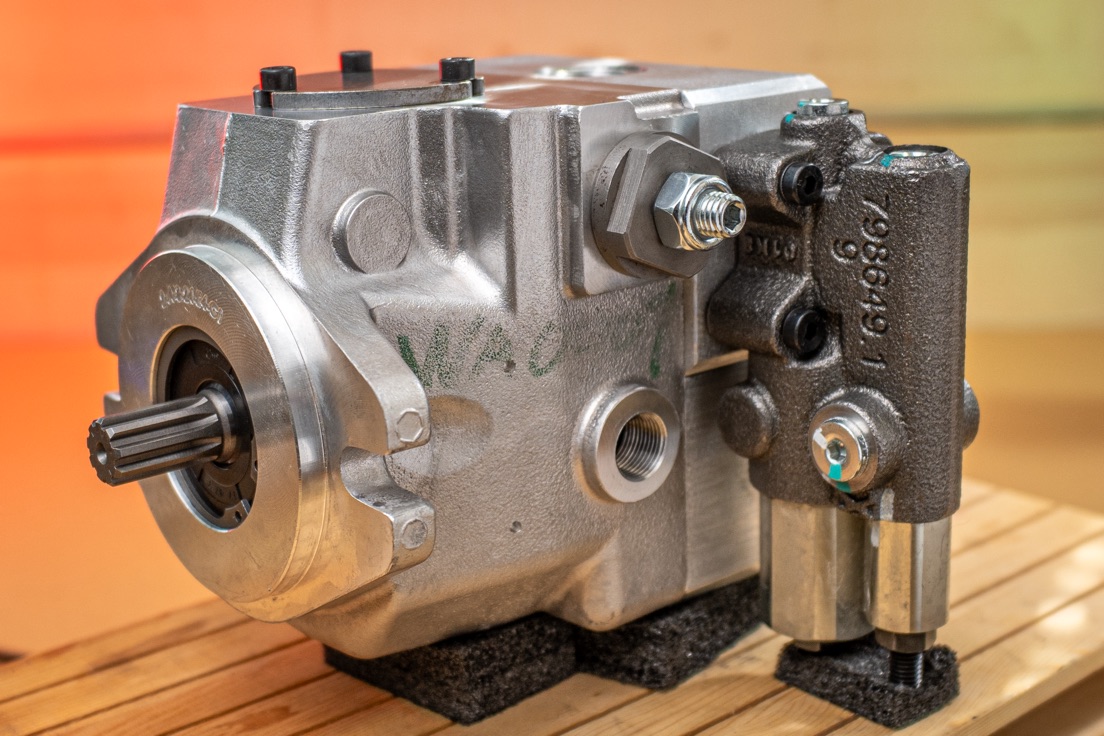

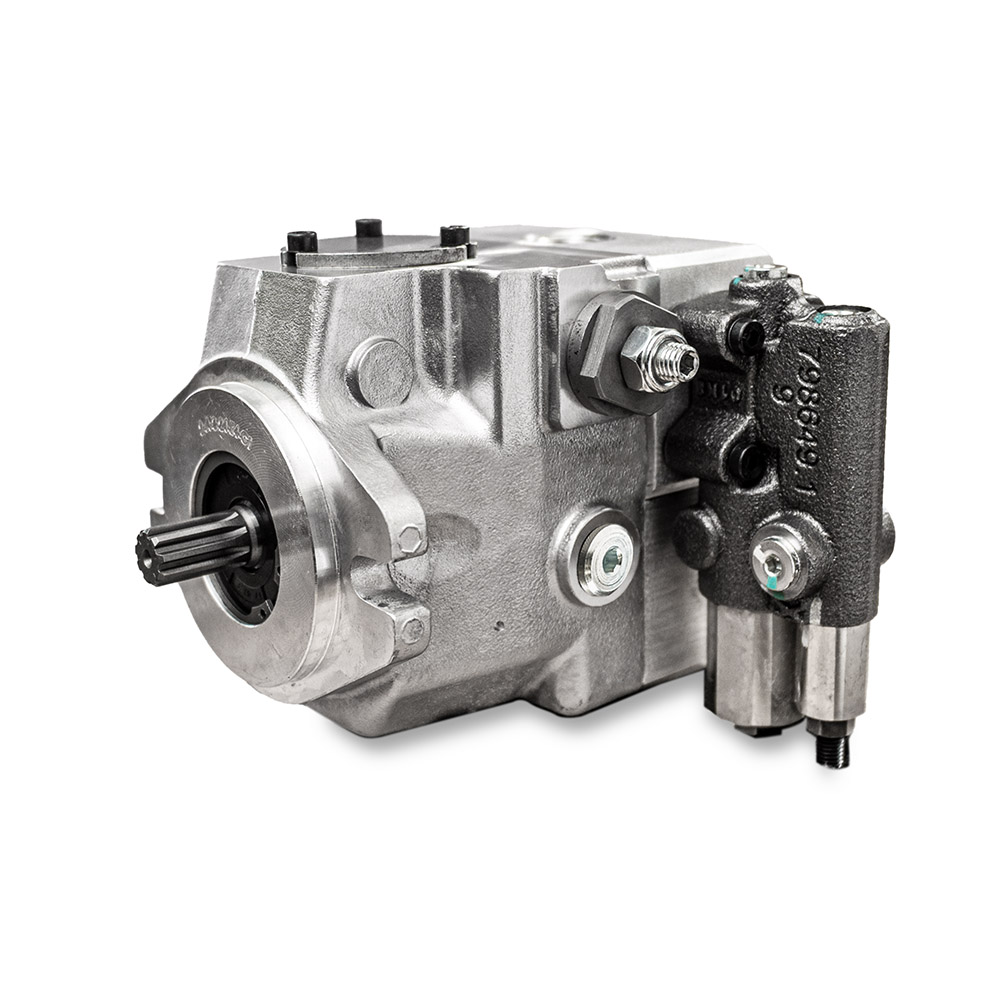

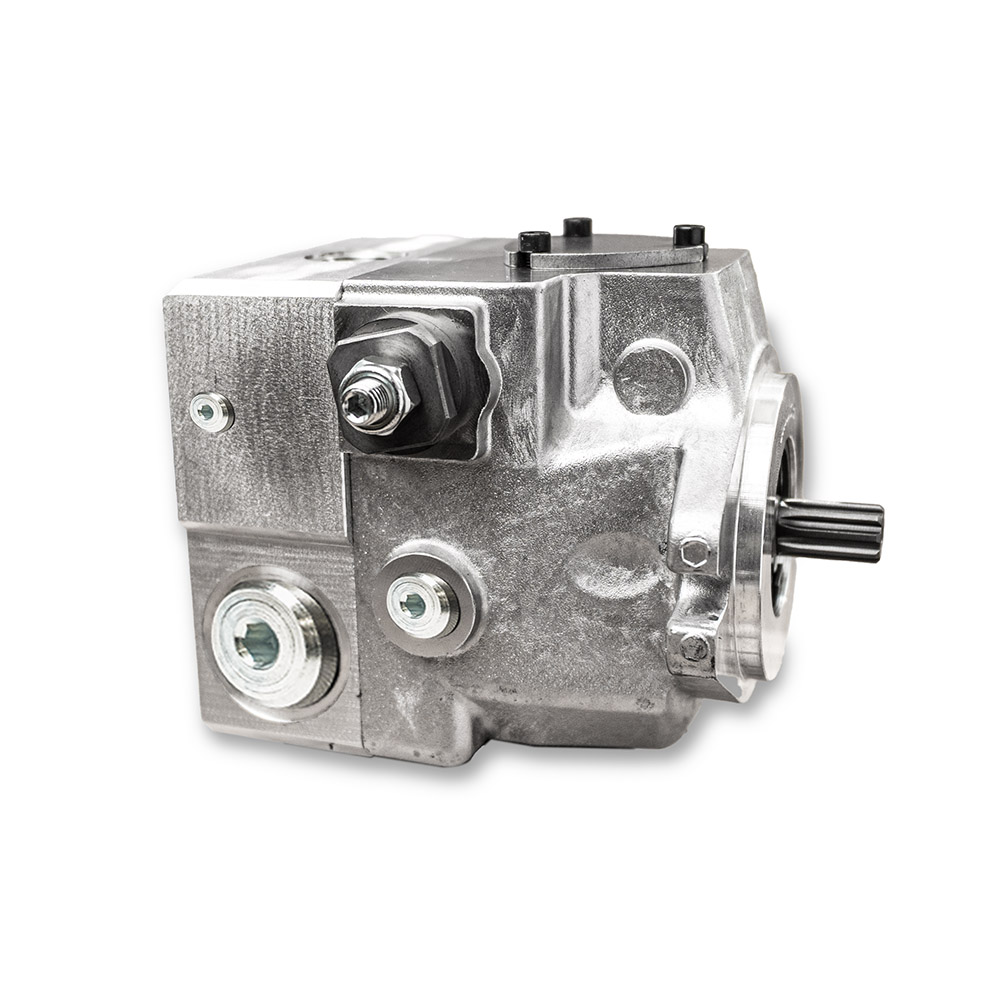

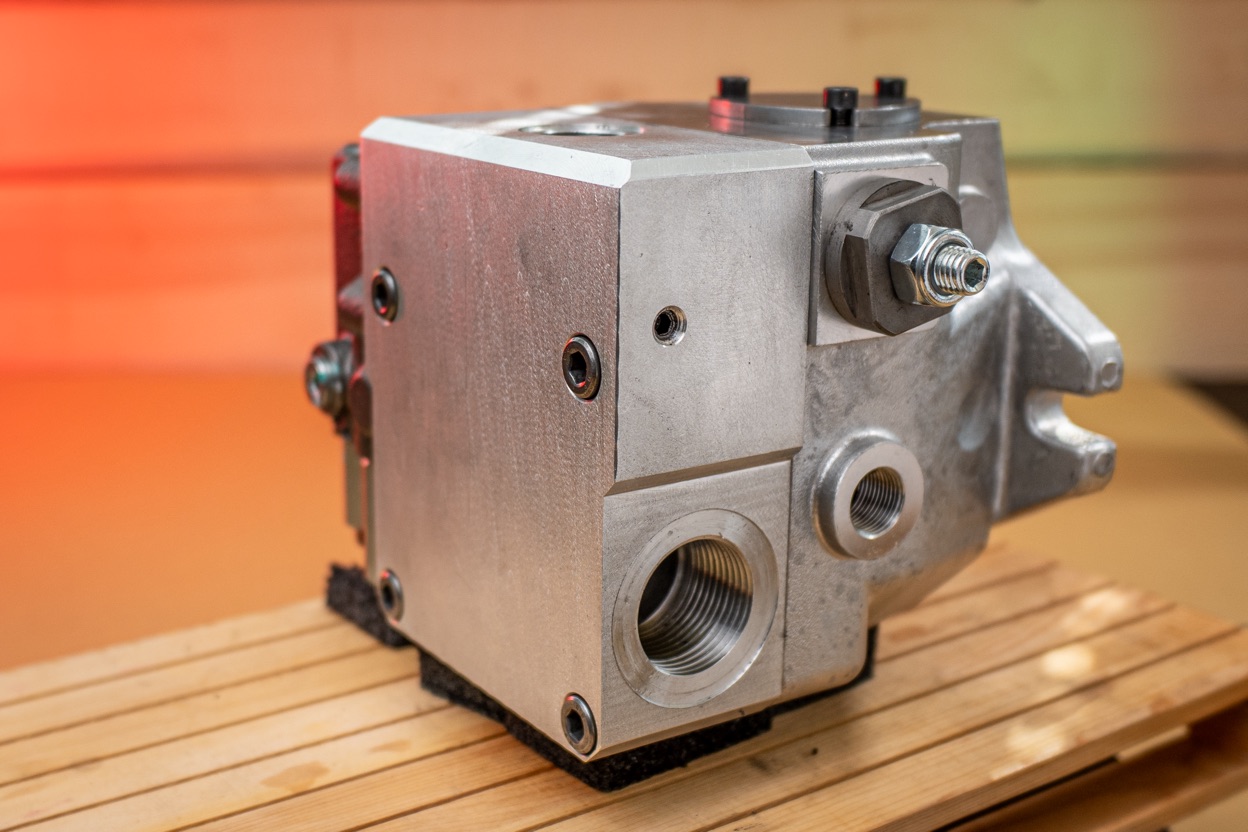

WA 18 series is a family of variable displacement axial piston pumps for use in open circuits in aluminium.
The displacement is continuously variable by means of a tilting swash plate, and the oil flow direction is reversible.
One through drive option for auxiliary pump is available:
Peak operations must not exceed 1% of every minute.
A simultaneous maximum pressure and maximum speed are not recommended.
