Model W0 14/18
| SERIE | W0 | |
| Displacement |
cc/giro cc/rev |
14 - 18 |
| Connection flange | SAE "A" | |
| Charge pump displacement |
cc/giro cc/rev |
5.4 |
| Max speed (1) |
giri/min rpm |
3600 |
| Min speed |
giri/min rpm |
700 |
| Rated pressure |
bar (psi) |
170 (2465) |
| Peak pressure |
bar (psi) |
250 (3626) |
| Charge pressure |
bar (psi) |
6 (standard) (87) (standard) |
| Max case pressure |
bar (psi) |
2 (29) |
| Suction pressure |
bar (psi) |
? 0.8 (? 11.6) |
| Moment of inertia rotating parts |
kg m² (lbf ft²) |
0.0014 (0.033) |
| Weight (approx) (2) |
kg (lb) |
6 (13.22) |
Notes: (1) The values shown are valid for an absolute pressure (pass) of 1 bar (14.5 psi) at the suction inlet port an when operated on mineral oil.

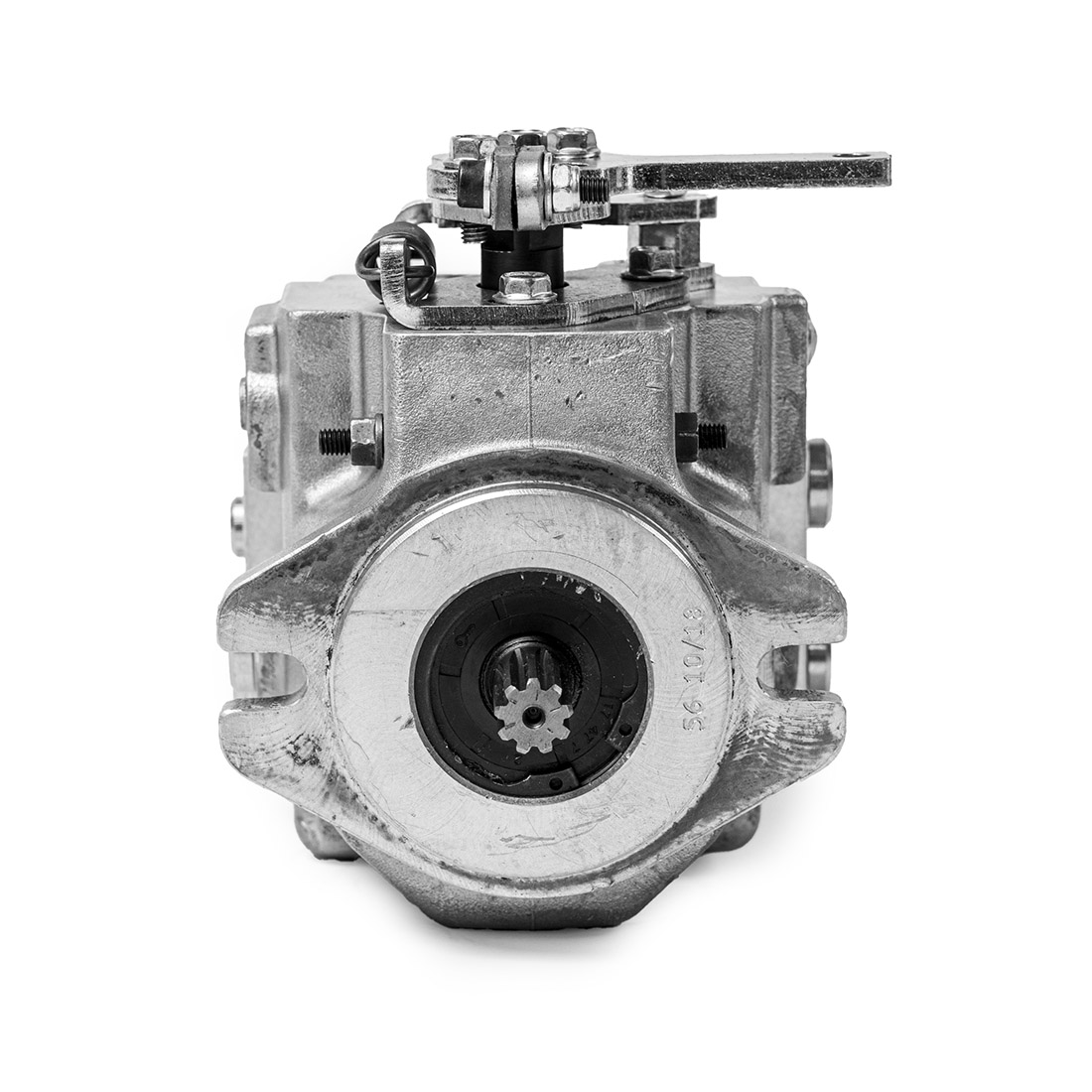

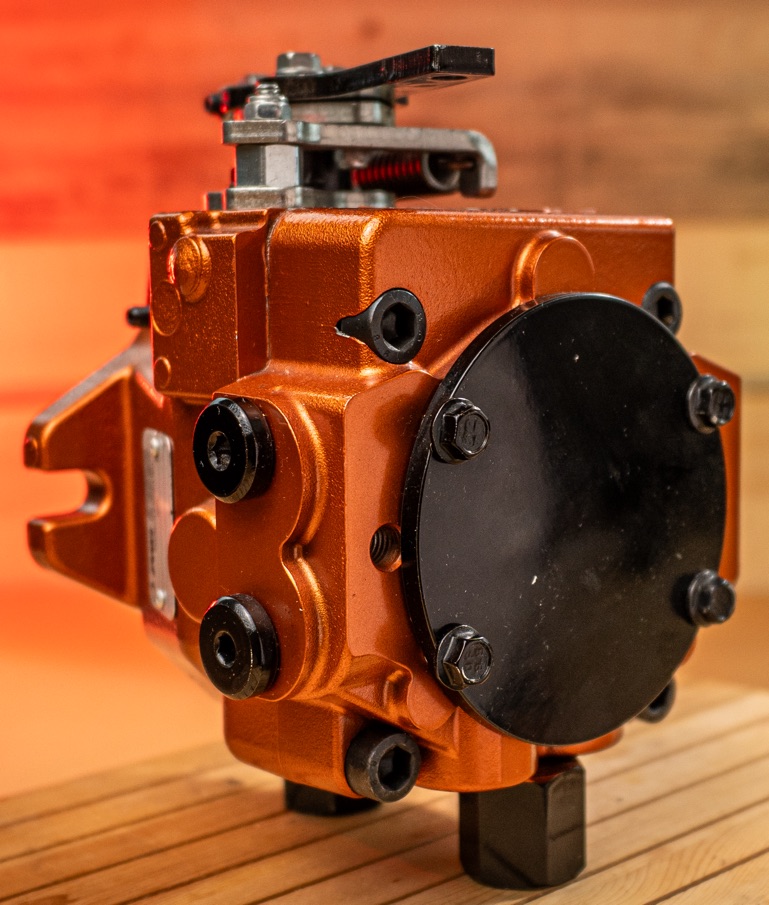

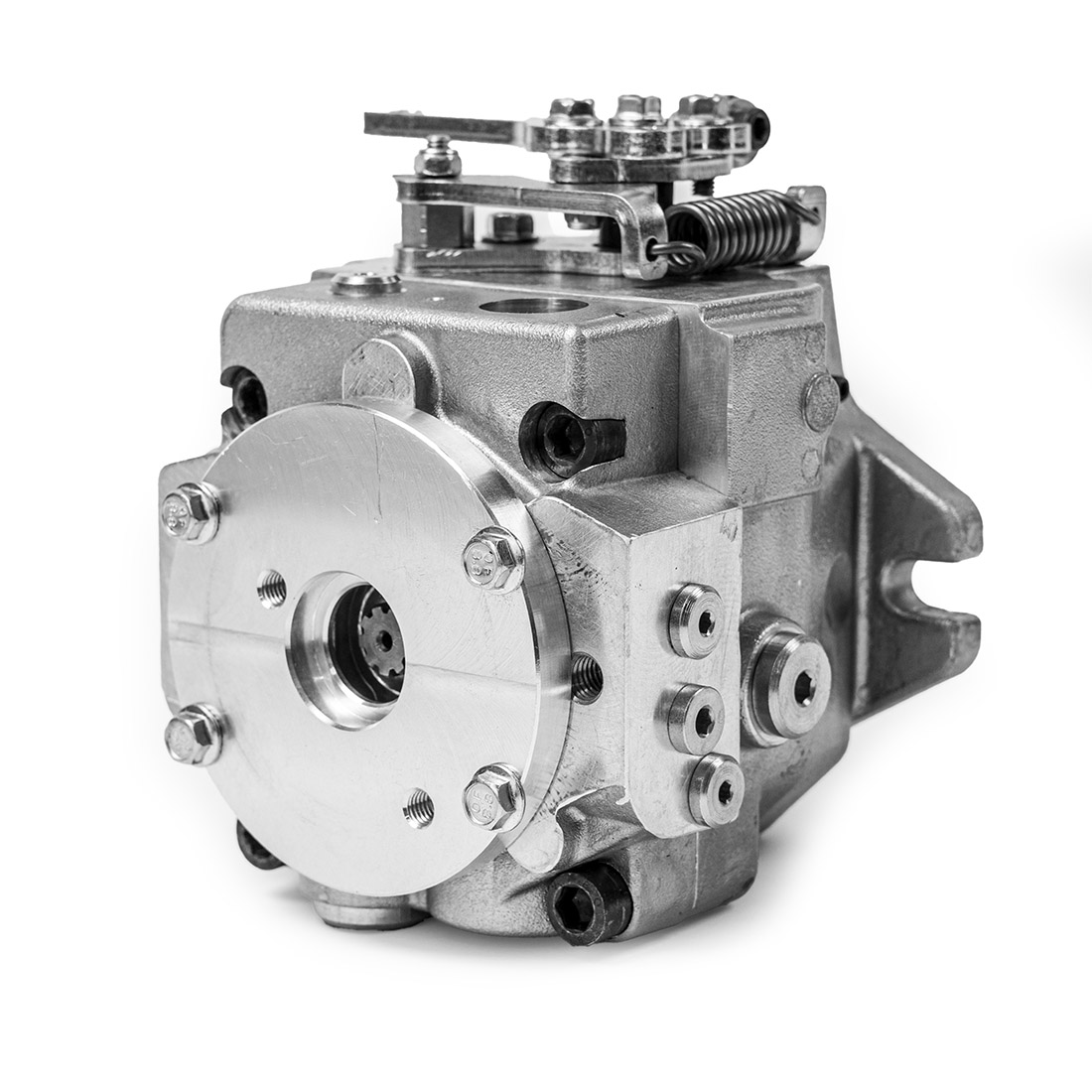

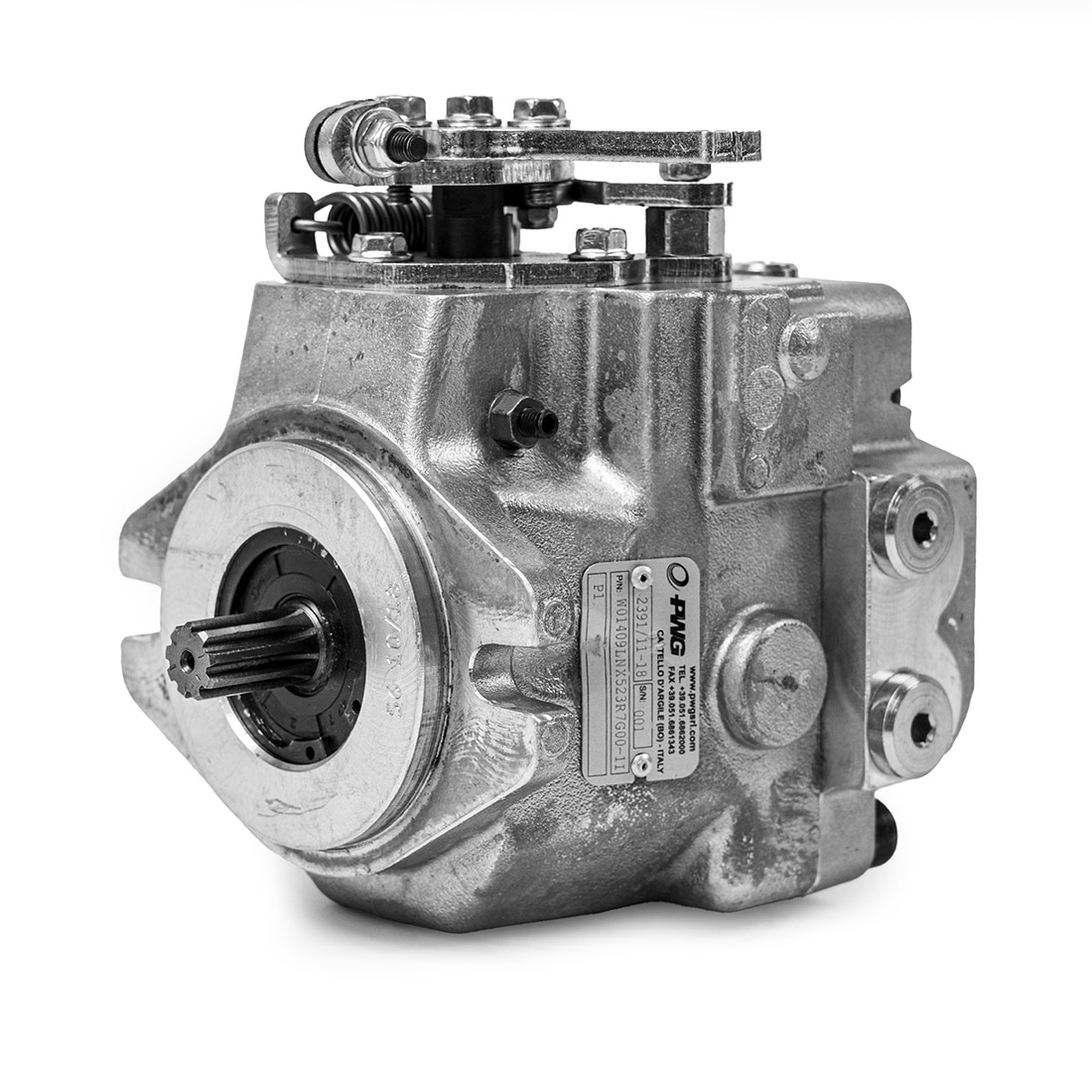

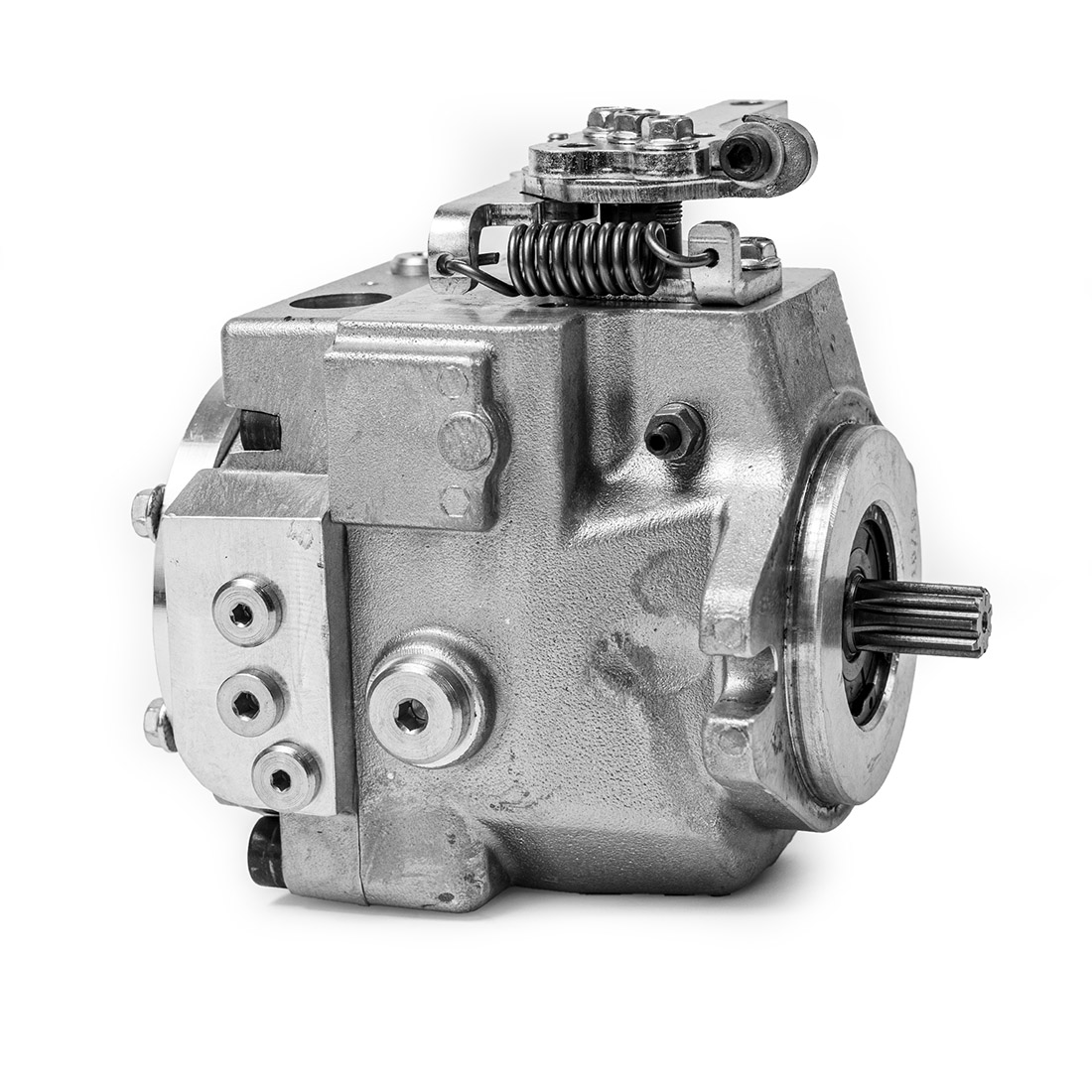

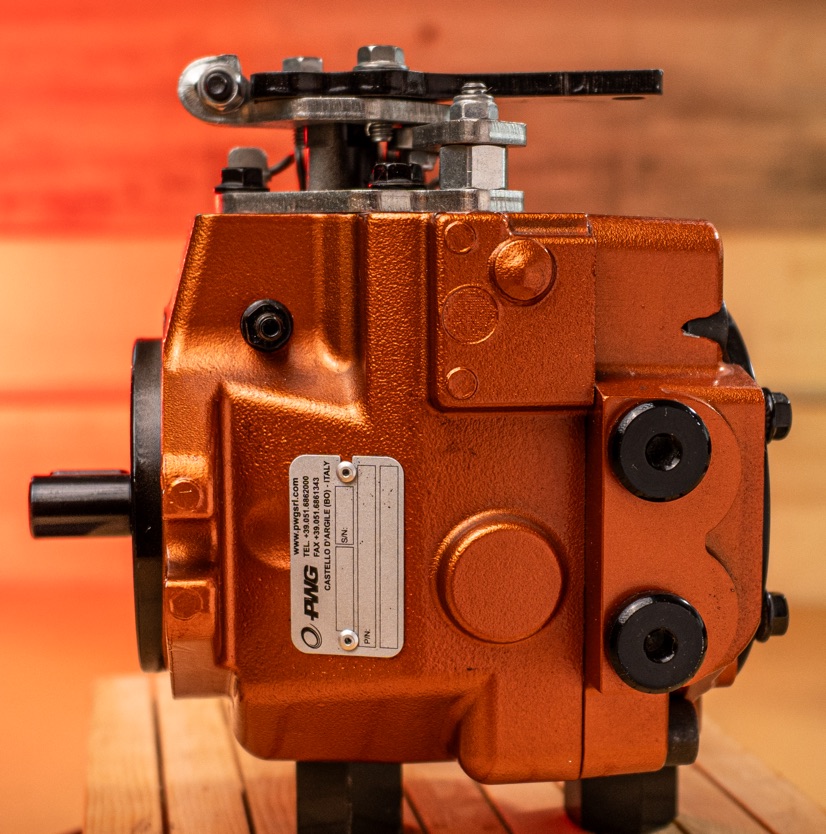

The W0 14-18 series includes variable displacement axial piston pumps designed for use in closed-loop circuits, featuring an aluminum housing and valve cover.
Displacement variation occurs through the rotation of a swash plate; by moving beyond the neutral point, flow reversal is achieved.
The unit offers the following range of controls:
One mounting provision for auxiliary pumps and two additional options are available:
Peak conditions must not exceed 1% of each minute.
Avoid simultaneous operation at maximum speed and maximum pressure.
