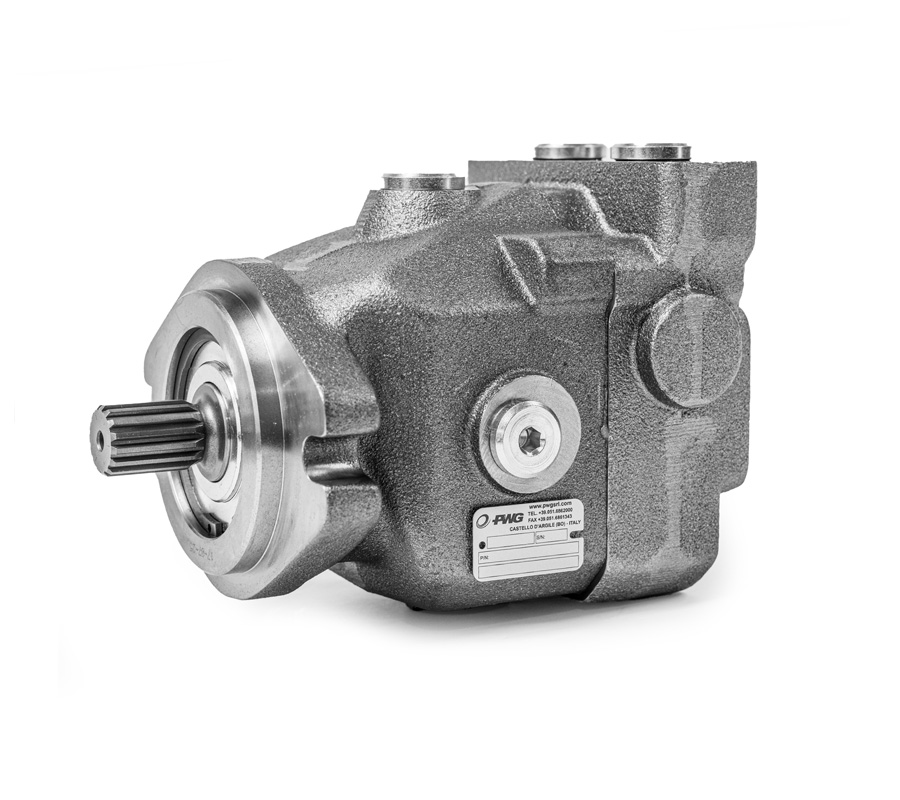

Motors with Axial Pistons MV series

Model MV 46/64

SERIE MV 46-64
Displacement cc/giro
cc/rev
46-64
Max speed min-1 4000
Min speed min-1 300
Continuous pressure bar
(psi)
300
(4350)
Peak pressure bar
(psi)
400
(5800)
ISO filtration class ISO 18/16/13, NAS 8
Optimized oil viscosity mm²/s 15-35
Weight Kg 22

The variable-displacement axial piston motors have been designed to work both in an open and closed circuit. Control sytems actually available are making easy to use these motors in any applications for industrial and mobile field.

Available control systems are:

  • 12V electrical control (2-position)
  • 24V electrical control (2-position)
  • Hydraulic piloted low pressure (30 bar) (2-position)
  • Direct hydraulic control, high pressure (2-position)

The following options are available:

  • Exchange valve
  • Pressure relief valves
